Strain Gauges

GLÖTZL strain gauges are based on the vibrating wire principle. With extensive expertise and through demanding processes, our gauges are developed and manufactured to achieve the highest levels of precision and durability. Depending on the application, you can choose between the DAB vibrating wire gauge for use in concrete structures

or the DSC vibrating wire gauge for steel structures. In both cases, highly precise measurements of compression and tension can be captured. A special product solution is our GWD 20, which has been specifically developed for use with geogrids.

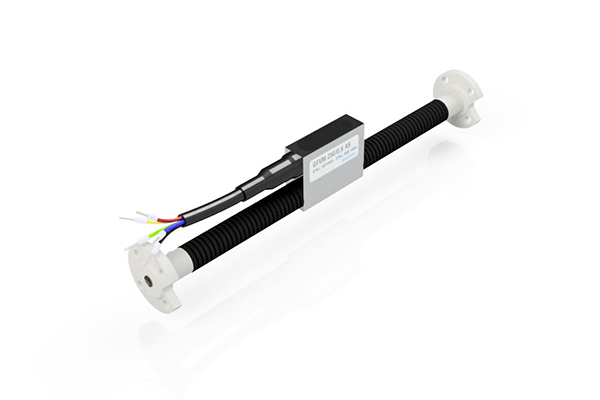

Type DBA

Vibrating Wire Strain Gauge –
Embedment Strain Gauge

The vibrating wire strain gauge type DSC for arc welding to steel structures is commonly used for monitoring compression and/
or tension in struts (excavation bracing), in structural members of buildings and bridges, girder constructions, sheet pile walls,
tunnel linings and other steel structures.

Data Sheet

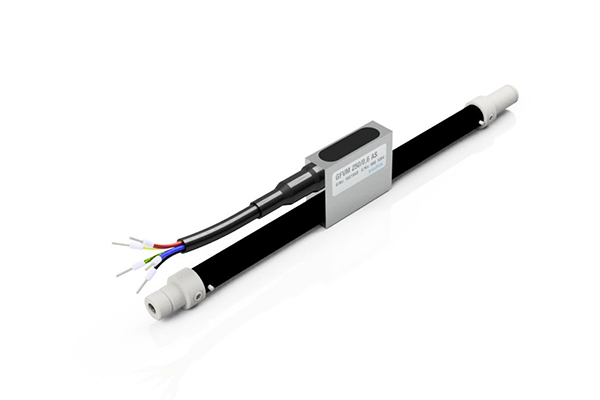

Type DSC

Vibrating Wire Strain Gauge for Steel –
arc Weldable Strain Gauge

The vibrating wire strain gauge type DSC for arc welding to steel structures is commonly used for monitoring compression and/or tension in struts (excavation bracing), in structural members of buildings and bridges, girder constructions, sheet pile walls, tunnel linings and other steel structures.

Data Sheet

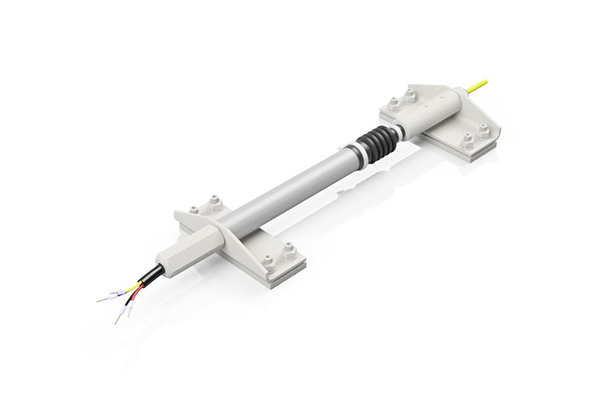

Type GWD 20 G

Electrical Displacement Transducers for Strain Measurement at the Geotextile Grid

The displacement transducer is used for measuring strain on geogrids. The GWD 20 series are designed for installation in boreholes or other inaccessible areas of application.

Data Sheet

Typ PBA

Potentiometric Concrete Strain Gauge

The potentiometric concrete strain gauge (PBA) measures large strains of up to 10 mm and therefore offers a significantly greater measuring range than vibrating wire strain gauges. Its precision stainless steel housing and the specially sealed cable outlet ensure a high level of pressure tightness.

Datenblatt

Type GFD

Precision Fissurometer

The precision fissurometer GFD is used to measure minor deformations with a high degree of accuracy. Typical applications are the monitoring of joints, cracks or fissures on buildings and structural elements.

Data sheet

Product overview
