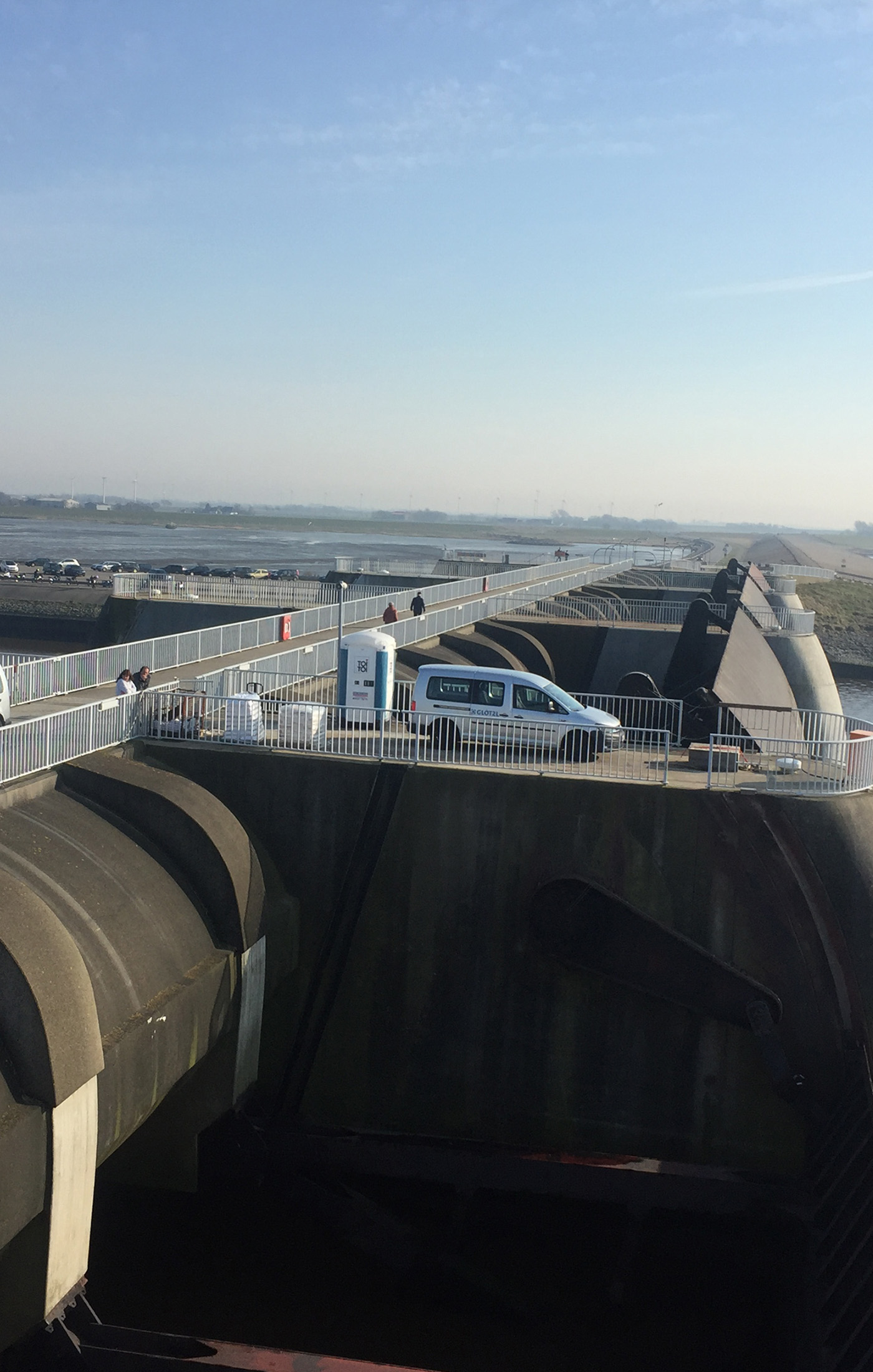

The Eider Barrage has 5 sluice fields.
Each year, one sluice field is refurbished.

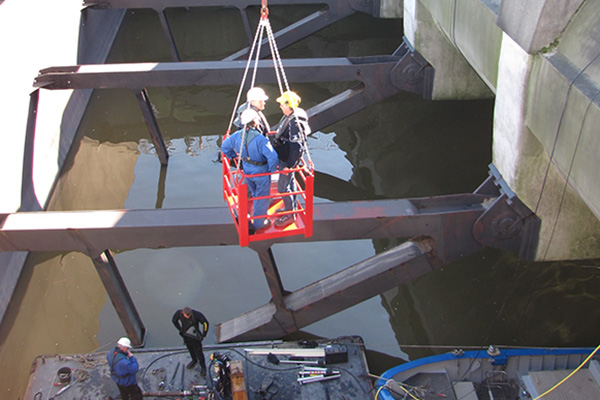

For this purpose, the system is installed every March and dismantled in October, followed by maintenance. The measurements ensure the safety of the personnel working within the sluice field and the structural integrity of the building. When critical pressure levels are reached, the monitoring system is capable of remotely controlling the pressure relief valves, thereby relieving pressure from the base plate.

Project: Eider Barrage Project Planning: 2014
Client: WSV Tönning

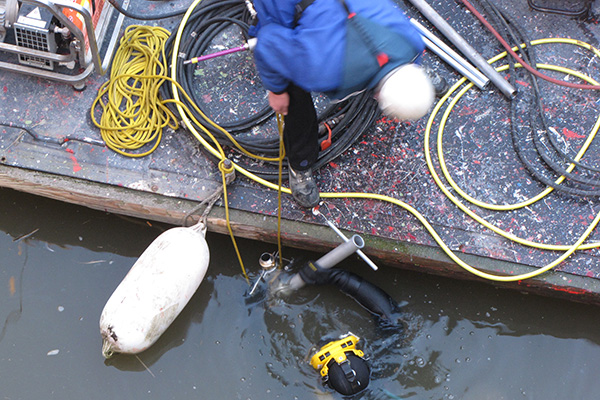

Special Features: Measurement of pore water pressures below the sluice plate using packer systems. Remote pressure relief via pressure relief packers accessible through the measurement system.

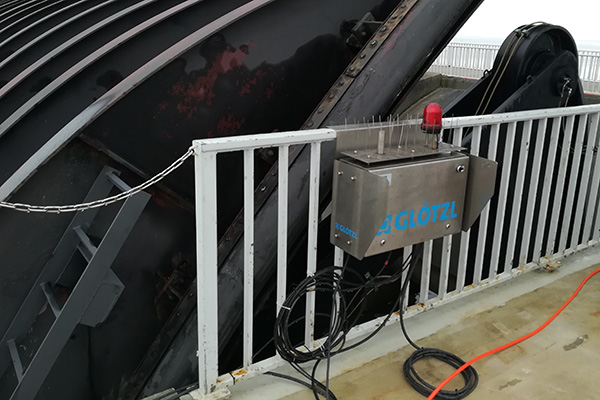

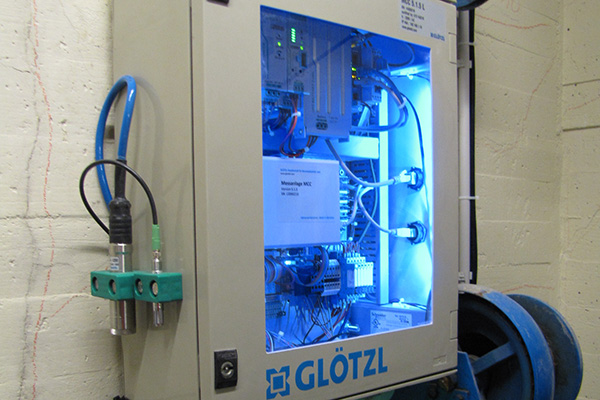

GLÖTZL Measurement Technology: Pore water pressure sensors in packer systems, water level sensors in the sluice field, optical and acoustic alarm functions, MCC measurement system with air pressure sensor, multiplexer MUX, evaluation software GLA 8
