Based on the observation method according to DIN 1054, a measurement program was developed for the B212n bypass road construction projects in accordance with the specifications of the geotechnical route assessment by BASt.

Geotechnical measurements are used to monitor and control expected deformations and stress changes in the subsoil over time and space. The measurement program ensures the supervision and approval of embankment works, guaranteeing the safety of the structure, the infrastructure within the route area, and an efficient construction process.

Project: New Construction of the Berne Bypass
Planning Phase: 2009 – 2015
Client: Lower Saxony State Authority for Road Construction and Transport, Oldenburg
Special Features: 5 subprojects, 50 measurement cross-sections, 601 measuring points

GLÖTZL Messtechnik:

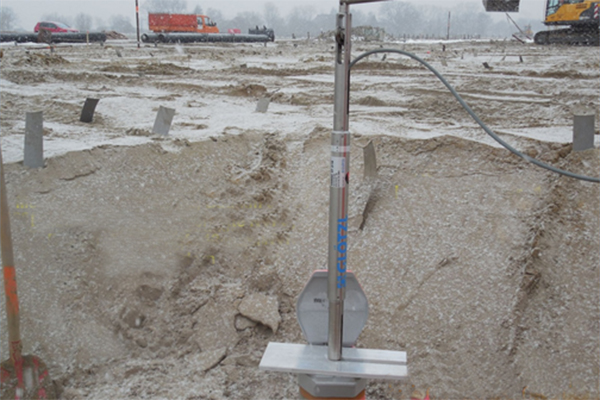

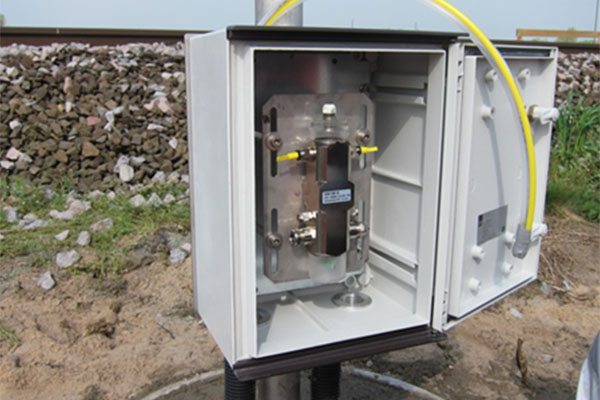

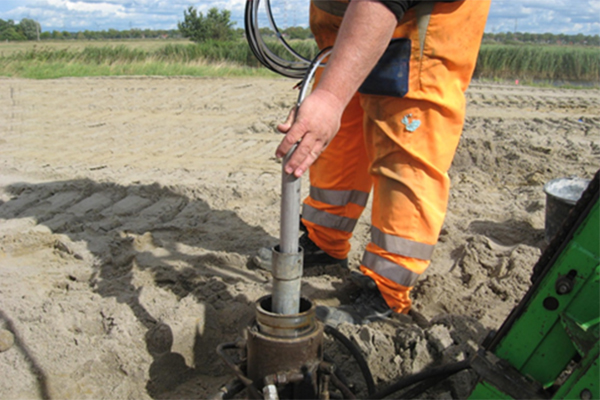

8 MCC 5.0 measurement systems, 26 FU sub-measuring stations, 432 pore water pressure sensors, 93 earth pressure sensors, 108 settlement sensors, 12 strain sensors, 9 inclinometer chains, 16 hose leveling devices (GHD), 1 evaluation software (GLA)
